AI Studio: Hiding Sensitive Data in AI Automation

Some data in MYOB Acumatica—such as account numbers and prices—shouldn’t leave your system. If you’ve avoided using certain prompts with AI tools because of security concerns, you can put those worries aside.

Starting in MYOB Acumatica 2026.1.1, you can use data masking in AI Studio to keep sensitive data secure. Here’s how it works:

  • You mask any sensitive details in your requests to a large language model (LLM) before sending them to the cloud.
  • The real data never leaves MYOB Acumatica—the LLM receives only masked content.
  • When the LLM returns the processed data to MYOB Acumatica, the system replaces the masked content with the actual data.
Attention: AI Studio is available only if the AI Studio feature is enabled on the Enable/Disable Features (CS100000) form. This feature is subject to licensing; please consult the MYOB Acumatica sales policy for details.

Read on to learn how AI Studio makes sure that the original data stays within MYOB Acumatica.

Masking Fields in the Instructions

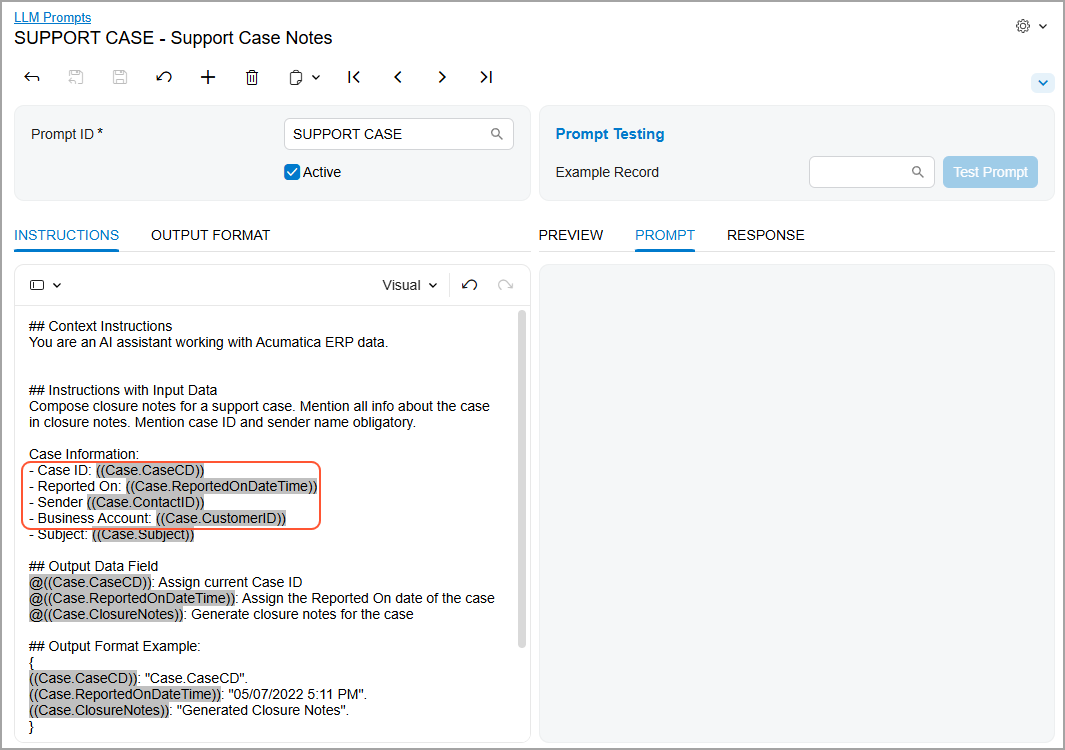

Suppose that you’ve created a prompt on the LLM Prompts (ML202000) form, and this prompt generates closure notes for a support case. It includes the case’s owner and business account (shown below), and you don’t want this data to go anywhere outside of MYOB Acumatica.

Figure 1. Unmasked fields in the prompt

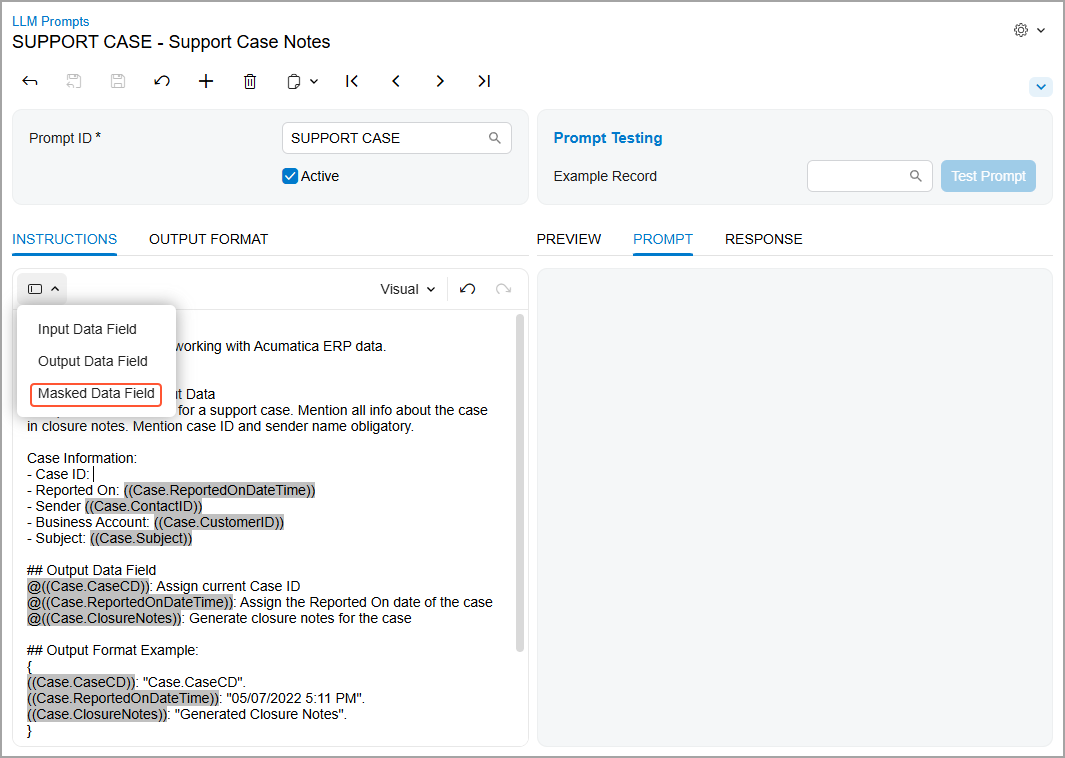

To mask these fields, click Insert > Masked Data Field (shown below) and select the needed field in the dialog box that opens.

Figure 2. The Masked Data Field command

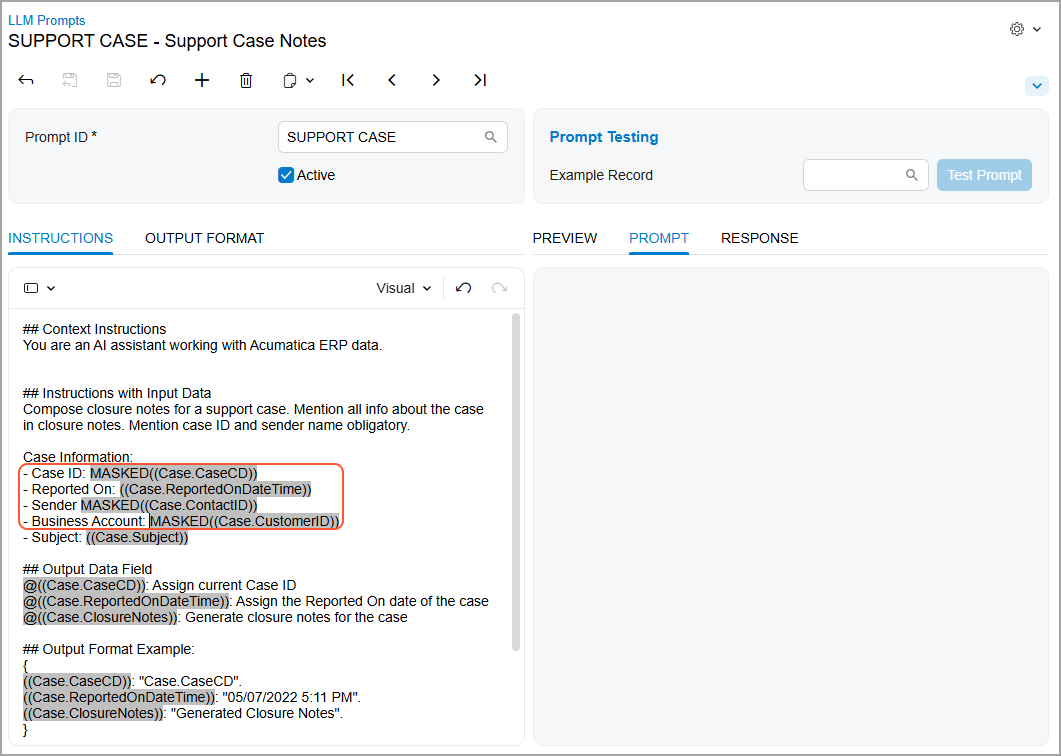

Notice that the system adds the MASKED prefix to the masked fields (see below).

Figure 3. Masked fields in the prompt

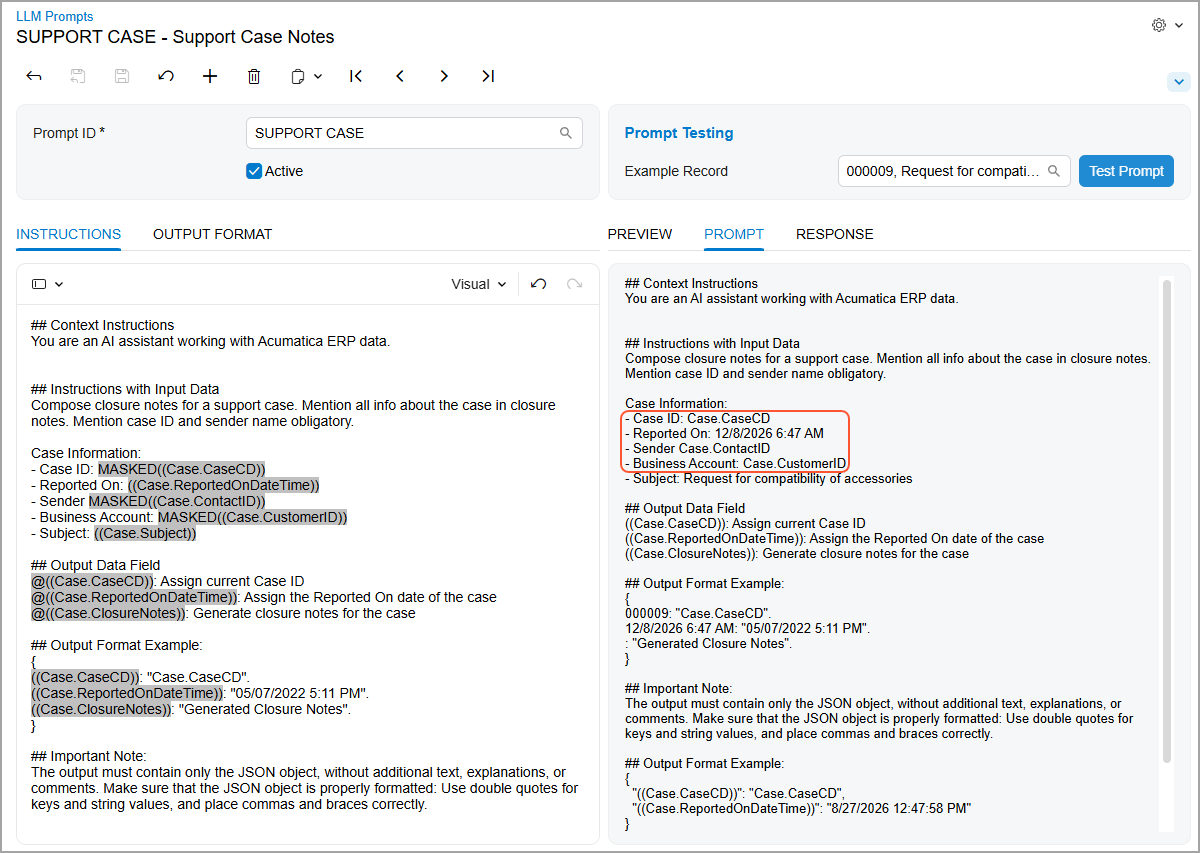

When you select an example record, the system displays the masked data on the Prompt tab (shown below) instead of the real data. This is the information that the system will send to the LLM.

Figure 4. Masked fields in the test prompt

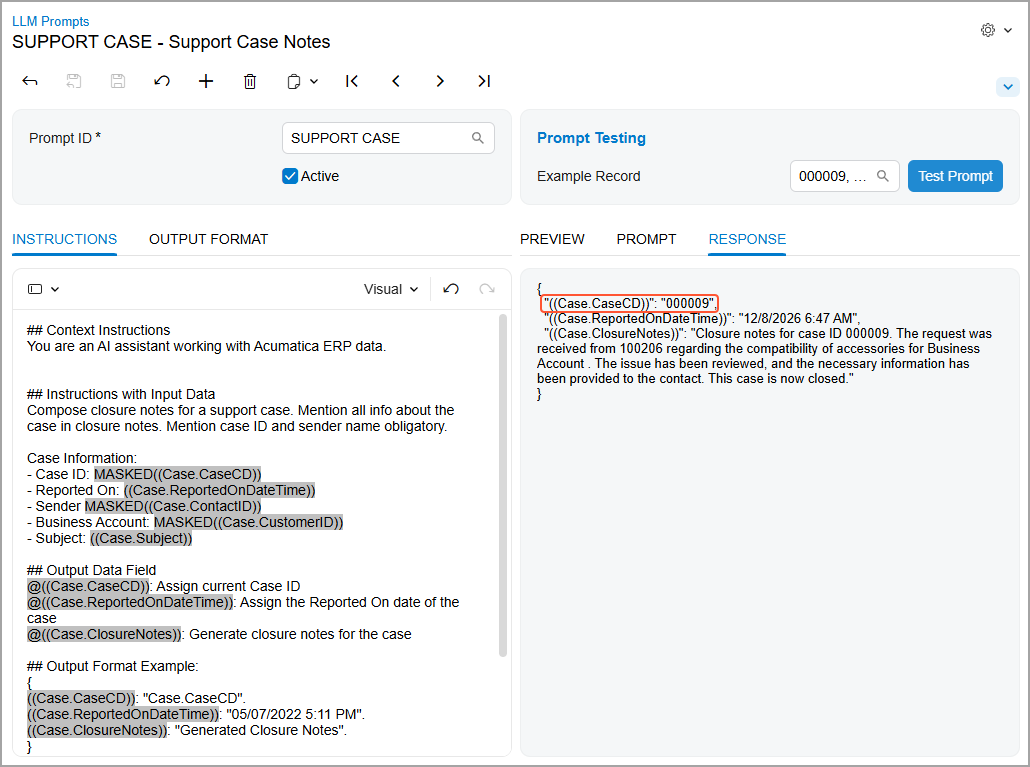

When you test the prompt and the LLM sends the processed data back to MYOB Acumatica, the system replaces the masked content with the actual data (see below).

Figure 5. The Response tab with real data


Masking Groups of Fields

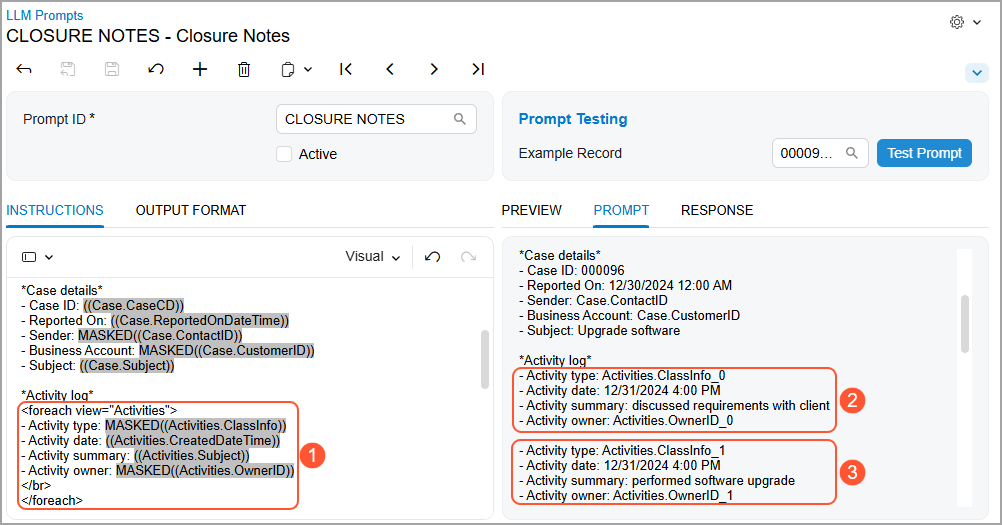

You can mask lists of records—such as a case’s activities or an invoice’s detail lines—by using the foreach loop (Item 1 below) to iterate through the records. The system masks each field and adds a numerical suffix (starting with 0) to each record, as Items 2 and 3 show.

Figure 6. Masking of multiple fields

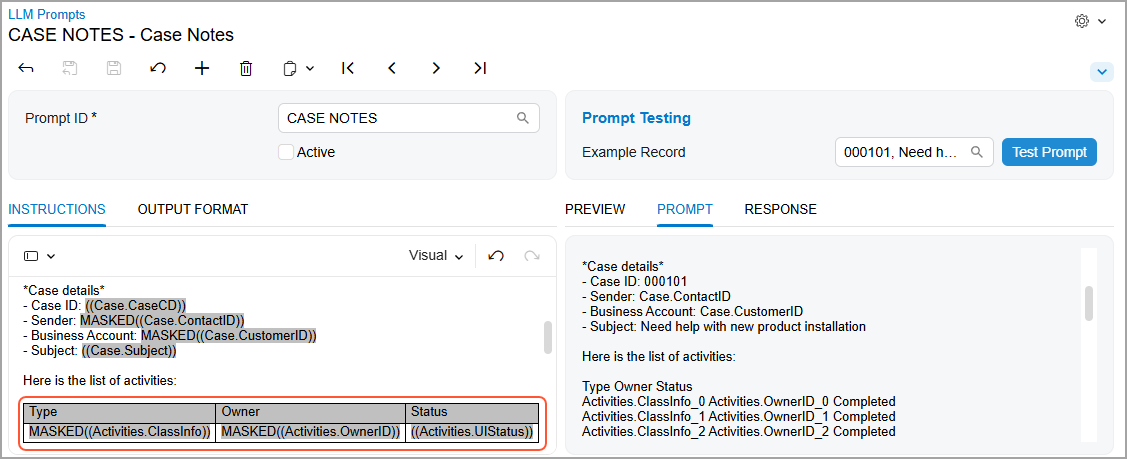

Similarly, you can add masked fields to a table. The example below shows a table that lists case activities.

Figure 7. Table with case activities


For details on using the foreach loop and listing details in a table, see Email Templates.

Tip: You can mask any field that’s displayed in the dialog box that opens when you click Insert > Masked Data Field. This includes attributes and user-defined fields.

Masking Data in Output Format Examples

An output format example is a part of the prompt—so it’s also sent to the LLM. When the system generates the example, it uses real data from the database. If it detects a field in the example that has a masked version in the Instructions with Input Data section of the Instructions tab, the system does the following:

  1. Replaces this field with its masked version

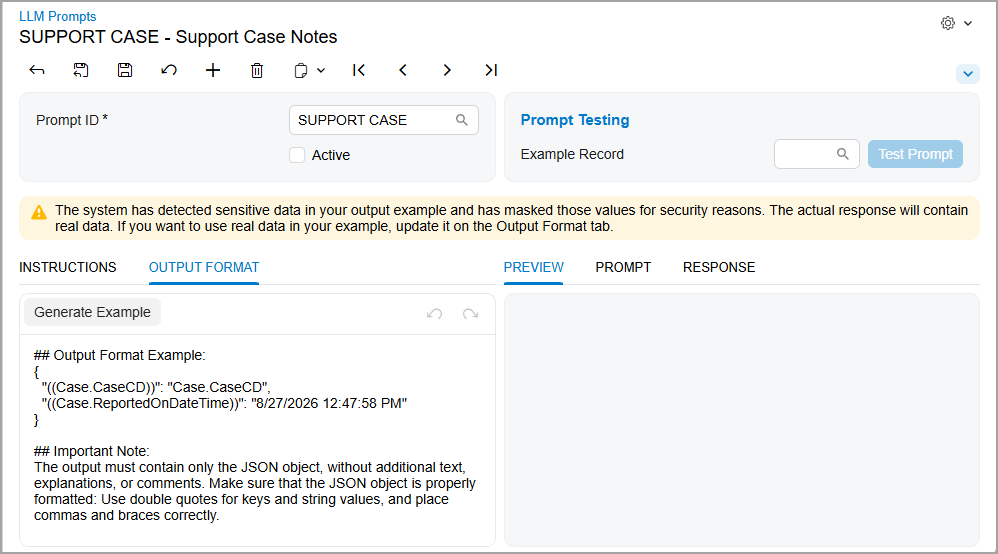

  2. Displays a warning about this replacement (shown below)

You can replace the data in the example with any arbitrary values.

Figure 8. A warning about masking output fields


Tracking Your Data

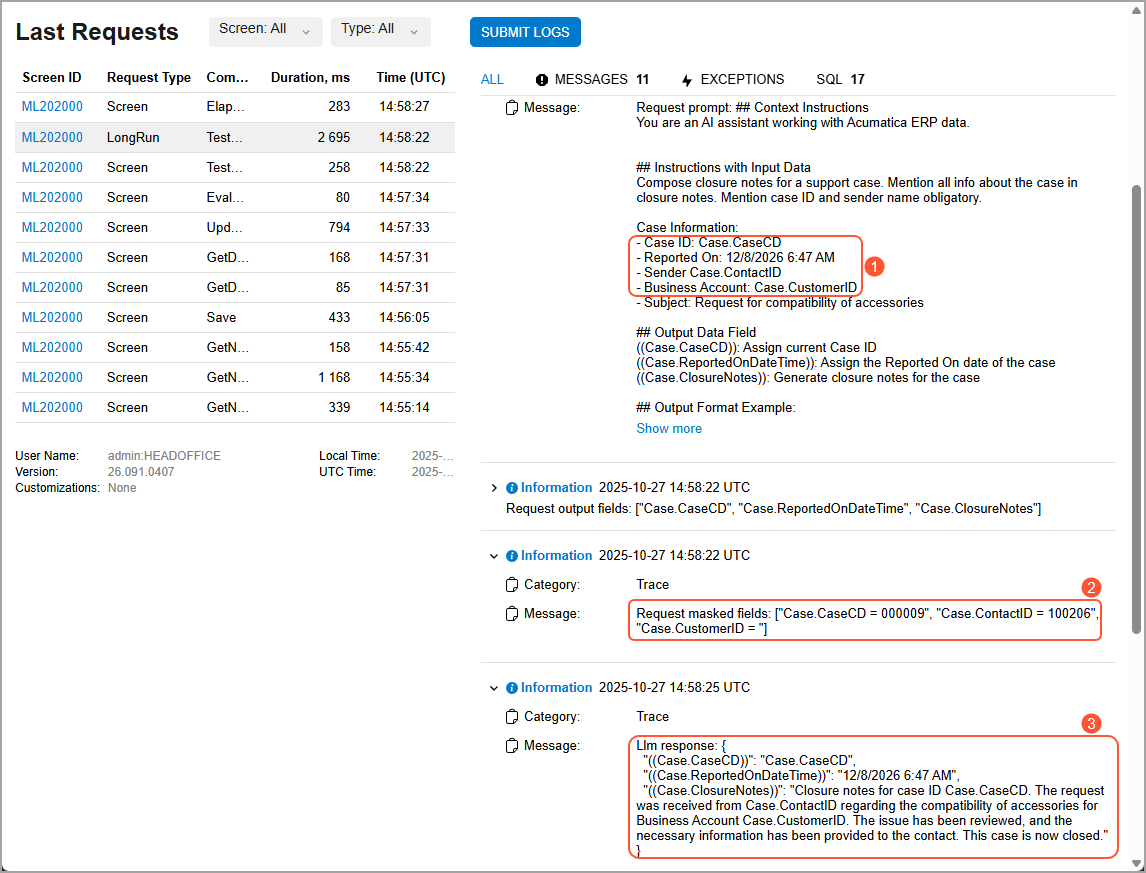

Want to track your data throughout the masking process? Go to the Trace page to see how:

  1. The system has masked the specified fields (Item 1 below).
  2. The system has recorded the real values of those fields (Item 2).
    Important: These real values stay within the system and are never shared with the LLM.
  3. The LLM returns the data in which the fields are masked (Item 3).
Figure 9. The Trace page


Tips for Success

  • Create a prompt as you usually do.
  • Identify what fields have sensitive data.
  • Use the new Masked Data Field command to insert each applicable field in a masked form.
  • Mask only specific fields or all fields.

Masking Limitation

You can’t mask fields that are part of a larger text field (such as case closure notes or an email reply). Even if you also add masked versions of those fields somewhere else in the instructions, the system won’t mask them in this text field.

Learn More

For details on configuring LLM prompts, see Integration with LLM Providers: General Information.
