To Add a New Tab Item to a Tab

You can add a new PXTabItem container to a tab on an existing form of MYOB Acumatica. To do this, perform the following actions:
  1. Open the form in the Screen Editor, as described in To Add a Page Item for an Existing Form.
  2. In the editor, click the Add Controls tab item.
  3. From the Main Containers group of the tab item, drag the Tab Item container above the customized tab, as shown in the following screenshot.

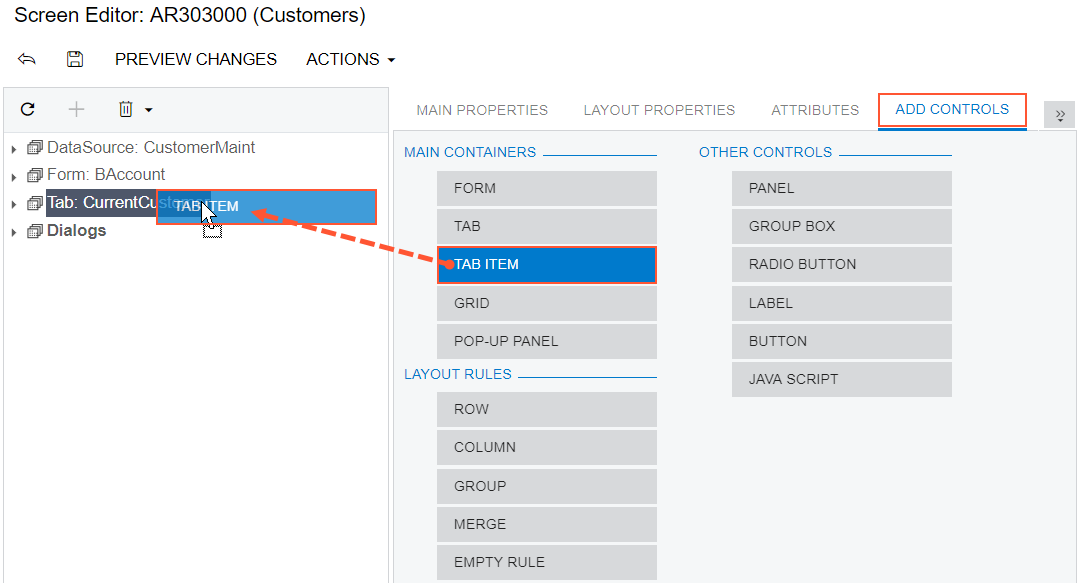

    Figure 1. Adding a tab item to the tab


    If the tab contains multiple tab items and you need to add a tab item to a certain position in the tab, you should expand the tab node in the Control Tree to see the existing tab items and drag the Tab Item container to the required position, as the following screenshot shows.

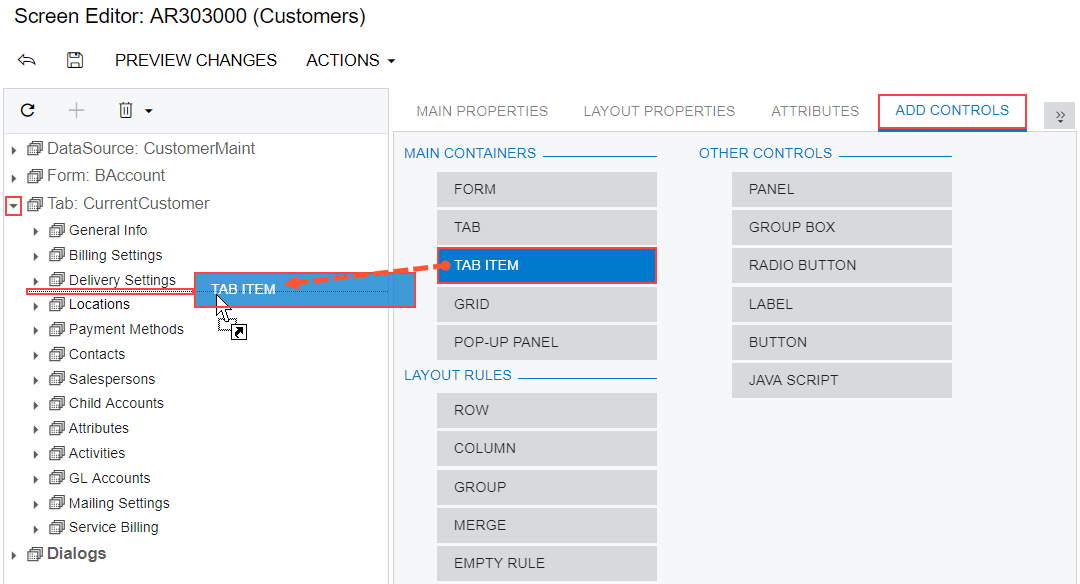

    Figure 2. Adding a tab item to a certain position in the tab


    Note:
    A tab item is visible if it contains at least one control for a field.
  4. In the Control Tree, select the tab item that has been added, and specify the item properties, as described in To Set a Container Property.
  5. Click Save on the toolbar of the Screen Editor to save your changes to the customization project.
