Form Layout: Box Connotations

You can highlight a value in the textbox control with a color connotation. The color can change depending on the value in the box.

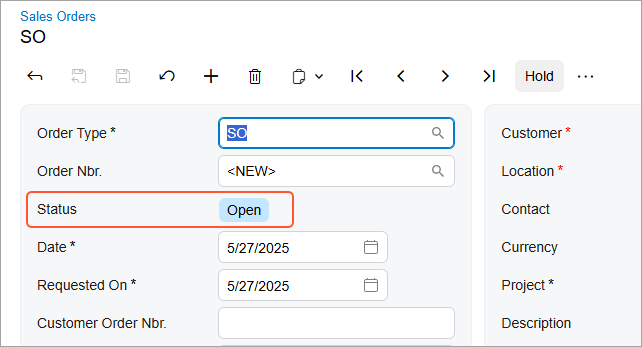

In MYOB Acumatica data entry forms with workflows, the Status box has default connotations. You can add new connotations or change existing ones. The following screenshot shows an example of the color connotation for the Open status.

Changing the Default Color or Defining a New One

You can specify a connotation for any box that has the PXStringListAttribute attribute on the corresponding DAC field. Some forms, such as data entry forms with workflows, have default connotations defined in the style.scss file of the screen folder or in the common folder of the module.

You can change the default connotation or create a new one by doing the following:

In the screen folder, open the style.scss file or create a new one.
If you’re creating a new file, in the style.scss file, import the mixin from the WebSites/Pure/Site/FrontendSources/screen/static/status-colors.scss file.

Define the correspondence between the PXStringList attribute values and the colors, as shown in the following example.

@import 'static/status-colors.scss';
@include colored-status('N', var(--status-blue-color));
@include colored-status('H', var(--status-orange-color));
@include colored-status('P', var(--status-red-color));
@include colored-status('V', var(--status-red-color));
@include colored-status('E', var(--status-orange-color));
@include colored-status('A', var(--status-orange-color));
@include colored-status('R', var(--status-red-color));
@include colored-status('C', var(--status-gray-color));
@include colored-status('L', var(--status-gray-color));
@include colored-status('B', var(--status-orange-color));
@include colored-status('S', var(--status-blue-color));
@include colored-status('I', var(--status-blue-color));
@include colored-status('D', var(--status-orange-color));

Specifying the Connotation for a Box

To specify connotations that have been defined in the style.scss file, do the following:

In the HTML template of the screen, import the styles.scss file that defines the connotations.
```
<template>
    <require from="./style.scss"></require>
    ...
</template>
```

For the field that you want to highlight, specify class="colored" in the corresponding field tag.

<qp-fieldset id="fsColumnA-Order" slot="A" view.bind="Document">
  ...
  <field name="Status" class="colored" pinned="true"></field>
</qp-fieldset>
