Personalization of the MYOB Acumatica UI: To Personalize a View of a Form

This activity will walk you through the process of personalizing the user interface on a data entry form.

Attention: This activity is performed in the Modern UI based on the U100 dataset. If you’re using the Classic UI, some features may not be available, which could affect processing. If you are using another dataset or if any system settings have been changed in U100, these changes can affect the workflow of the activity and the results of the processing. To avoid issues, restore the U100 dataset to its initial state.

Story

Suppose that you are David Chubb, a sales manager at the SweetLife Fruits & Jams company. The system administrator has recently switched the MYOB Acumatica instance to the Modern UI. Acting as David Chubb, you need to personalize a data entry form to meet your working needs.

Process Overview

In this activity, you’ll do the following on the Invoices and Memos (AR301000) form:

  1. Reorder the most frequently used tabs
  2. Hide the tabs that you don’t use in your work, and then show one of them again
  3. Customize the set and order of columns in the table by using the Column Configuration dialog box
  4. Manage the appearance of fieldsets on the tab

System Preparation

Before you begin performing the steps of this activity, do the following:

  1. Launch the MYOB Acumatica website with the U100 dataset preloaded and the Modern UI turned on.
  2. Sign in to the system as David Chubb by using the following credentials:
    • Username: chubb
    • Password: 123

Step 1: Reordering Tabs

To change the order of tabs and move the most frequently used ones to the front, do the following:

  1. On the Invoices and Memos (AR301000) form, add a new record.
  2. Drag the Addresses tab after the Details tab, as shown below.
    Figure 1. Reordering the Address tab


  3. Drag the Applications tab after the Addresses tab.

Step 2: Changing Tabs’ Visibility

Suppose that you seldom use some tabs and decide to hide two of them. Later, you realize that you need one of these tabs more frequently than you originally thought, so you decide to show it again. To change the visibility of tabs, do the following while you are still on the Invoices and Memos (AR301000) form:

  1. Drag the Taxes tab to the More button and then move it to the Hidden Tabs section that appears on the screen (see below).
    Figure 2. Moving a tab to the Hidden Tabs section


  2. Similarly, drag the Compliance tab to the Hidden Tabs section.
  3. To show the Taxes tab again, click the More button. Then drag the Taxes tab from the Hidden Tabs section and to the Financial tab (see below).

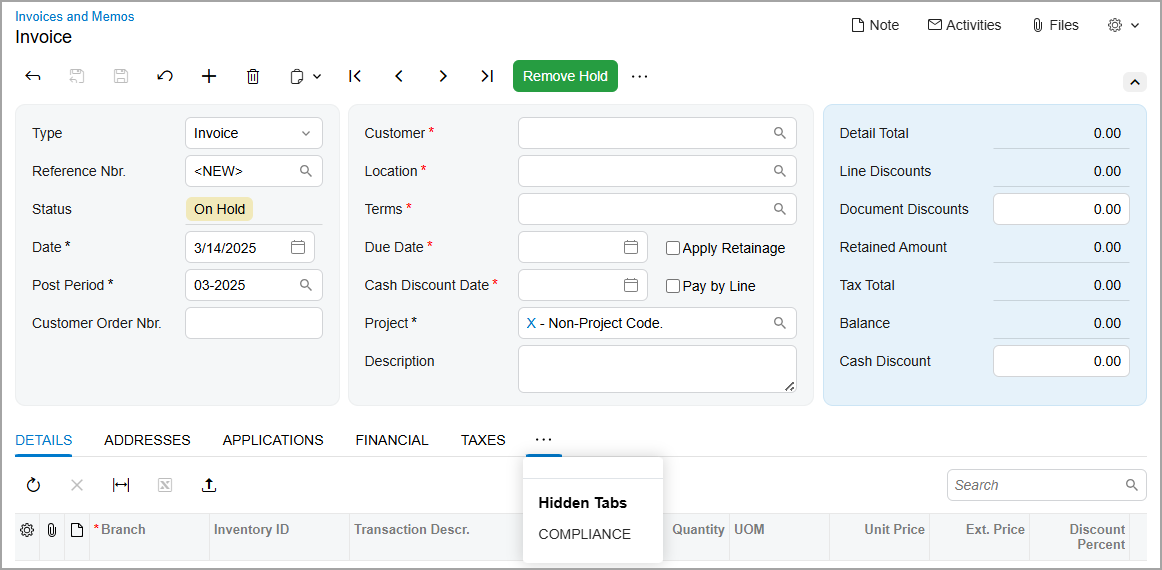

    Figure 3. Returning a tab from the Hidden Tabs section


Step 3: Managing Table Columns by Using the Column Configuration Dialog Box

Suppose that youwant to personalize the columns on the Details tab of the Invoices and Memos (AR301000) form as follows:

  • Add the Manual Price column to the table so that you know whether the price for each service was changed manually
  • Hide the unneeded Project Task and Cost Code columns
  • Change the column order by moving the Salesperson ID column after the Branch column

To customize the set and order of these columns, do the following while you are still on the Invoices and Memos (AR301000) form:

  1. Go to the Details tab.
  2. In the upper-left corner of the table toolbar, click the Settings button. The Column Configuration dialog box opens.
  3. Select the check box for the Manual Price column.
  4. Click OK.

    The Manual Price column is added to the table (as shown below).

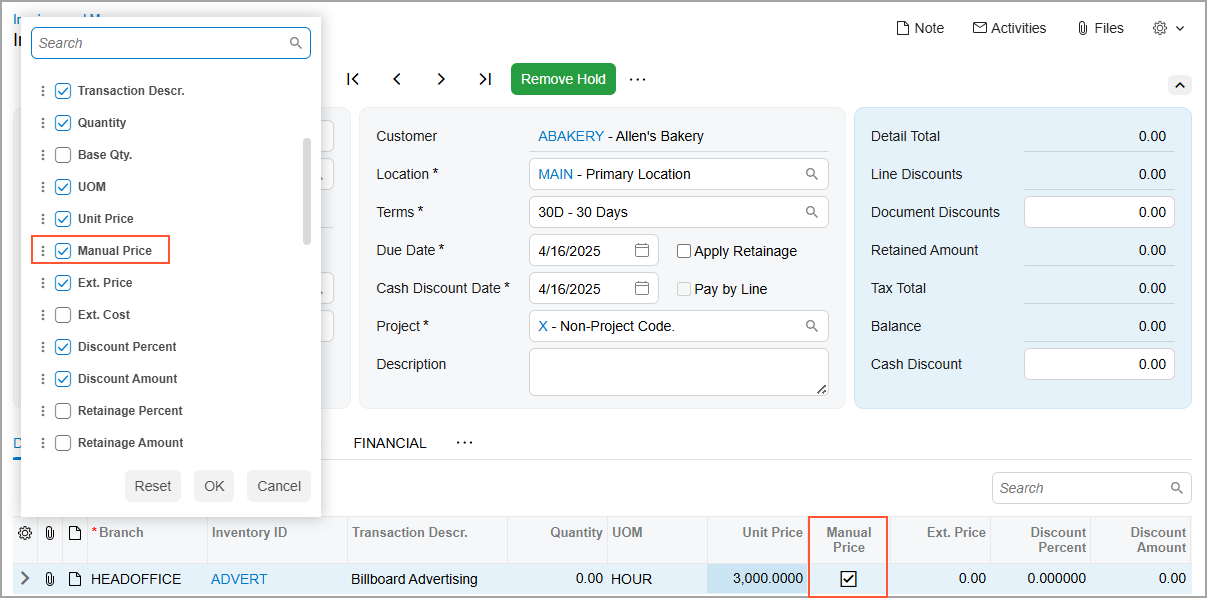

    Figure 4. Adding the hidden column to the table


  5. On the table toolbar, click the Settings button again.
  6. In the Column Configuration dialog box, which opens, clear the check boxes for the Project Task and Cost Code columns.
  7. Click OK. The unneeded columns have been removed from the table.
  8. Click the Settings button.
  9. In the Column Configuration dialog box, find the Salesperson ID column. Drag it upward and place it immediately after the Branch column, as shown below.

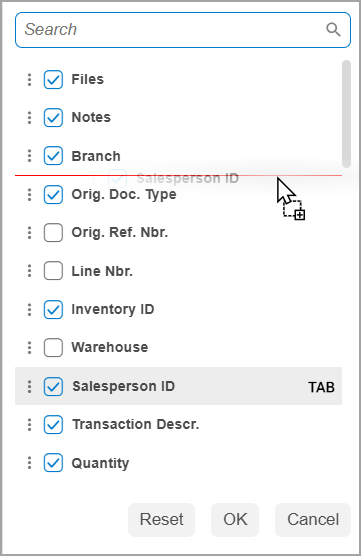

    Figure 5. Changing the order of columns in the table


  10. Click OK

Step 4: Customizing Fieldsets

Suppose that during your work, you don’t need the information displayed in the Bill-To Contact and Bill-To Address sections of the Addresses tab of the Invoices and Memos (AR301000) form. To collapse these sections, do the following while you are still on this form:

  1. Go to the Addresses tab.
  2. Hover over the Bill-To Contact section.
  3. Click the arrow icon that appears to the right of the section name, as shown below.
    Figure 6. The button to collapse the tab section


    The Bill-To Contact section collapses.

  4. Hover over the Bill-To Address section.
  5. Again click the arrow icon that appears to the right of the section name. The section collapses, as shown below.

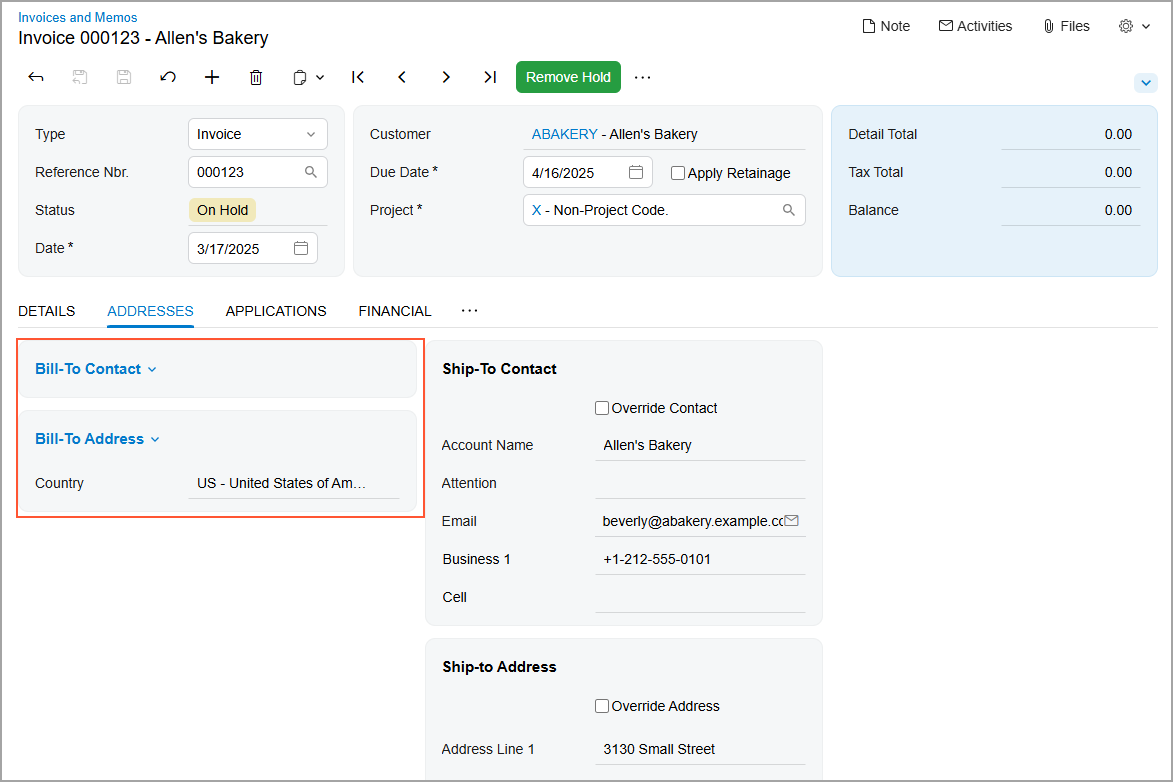

    Figure 7. The collapsed tab sections


    Tip: To expand a collapsed section, click the arrow icon.
