Filtering Parameters: To Display the Filter Values in the URL

When a form contains filtering parameters, it is sometimes useful to have the selected parameter values in the form URL so that the same form (that is, the form with the same selections made) can be opened elsewhere without the filter parameter values needing to be entered again.

Story

Suppose that the users of the custom Open Payment Summary (RS401000) inquiry form would like to easily share filtered inquiry results with other users by just sharing a link to the form without specifying which values need to be selected. You need to implement these functionality for the form.

Process Overview

You will implement this behavior by adding the PageLoadBehavior property and setting its value to PopulateSavedValues in the graphInfo decorator in the TypeScript file of the form. The filter values of the primary view will be placed in the form URL. You will then test the implemented behavior.

System Preparation

Before you begin performing the steps of this activity, do the following:

Prepare an MYOB Acumatica instance by performing the Test Instance for Customization: To Deploy an Instance with a Custom Form that Implements a Workflow prerequisite activity.
Complete the steps described in the following prerequisite activities:

Step 1: Displaying the Filter Values in the URL of the Inquiry Form

To display the filter values in the URL of the form, do the following:

In the RS401000.ts file, add PXPageLoadBehavior in the import directive.
Add the PageLoadBehavior property in the graphInfo decorator, as the following code shows.
```
@graphInfo({
	graphType: "PhoneRepairShop.RSSVPaymentPlanInq",
	primaryView: "DetailsView",
	pageLoadBehavior: PXPageLoadBehavior.PopulateSavedValues,
})
```
The system inserts into the URL the filter values of the primary view only (in this case, the values of the PXFilter<RSSVWorkOrderToPayFilter> Filter view).
Publish the customization project.

Step 2: Testing the Filtering Parameters of the Inquiry Form

In this step, you will test the Open Payment Summary (RS401000) inquiry form with the filtering parameters. To test the filtering parameters, do the following:

In MYOB Acumatica, open the Open Payment Summary (RS401000) form.

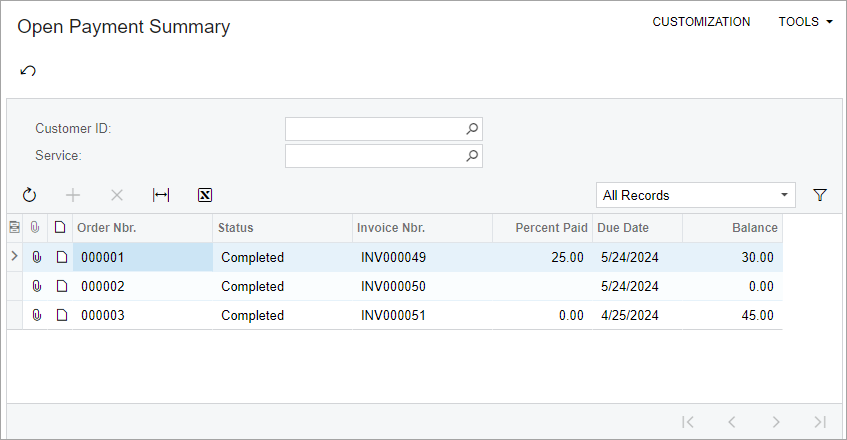

The form should look as shown in the following screenshot. Notice that the form contains a form toolbar, the Selection area with UI elements that correspond to the filtering parameters, and a table with a toolbar.
Figure 1. The revised Open Payment Summary form
On the Repair Work Orders (RS301000) form, do the following:
1. Create a repair work order, and specify the following settings:
  - Customer ID: C000000003
  - Service: Battery Replacement
  - Device: Nokia 3310
  - Description: Battery replacement, Nokia 3310
2. On the form toolbar, click Remove Hold, Assign, Complete, and Create Invoice.
On the Open Payment Summary form, in the Customer ID box, select C000000001.
The table displays work orders for the C000000001 customer. Notice that the page URL (shown below) includes the form ID and customer ID values.
```
http://localhost/SmartFix_T250/Main?ScreenId=RS401000&CustomerID=C000000001
```
In the Service box, select the Battery Replacement service.
The table now displays the work orders for the C000000001 customer and the Battery Replacement service. Notice that the page URL (shown below) contains the form ID, customer ID, and service ID values.
```
http://localhost/SmartFix_T250/Main?ScreenId=RS401000&CustomerID=C000000001&ServiceID=1
```
This URL can be copied and shared with other users.
On the form toolbar, click Cancel.
Notice that the boxes in the Selection area have been cleared and that the URL no longer includes the filter values.
