Modern UI Editor: Adding Decorators to the Selected View or Field

By using the Modern UI Editor, you can view and customize the TypeScript properties of a view or field. You use the View or Field Customization tab (Item 1 below) of the Modern UI Editor page to view or customize the TypeScript properties of a view or field that is selected in the element tree (Item 2). The original code of the selected view or field is displayed in the Original Code area (Item 3).

You use the Add Decorators button (Item 4) on the tab toolbar to add new decorators to the selected view or field and customize the corresponding properties of each decorator. The added decorator code is displayed in the Custom Code area (Item 5). You can also manually write the code in this area to customize the TypeScript properties of a view or field.

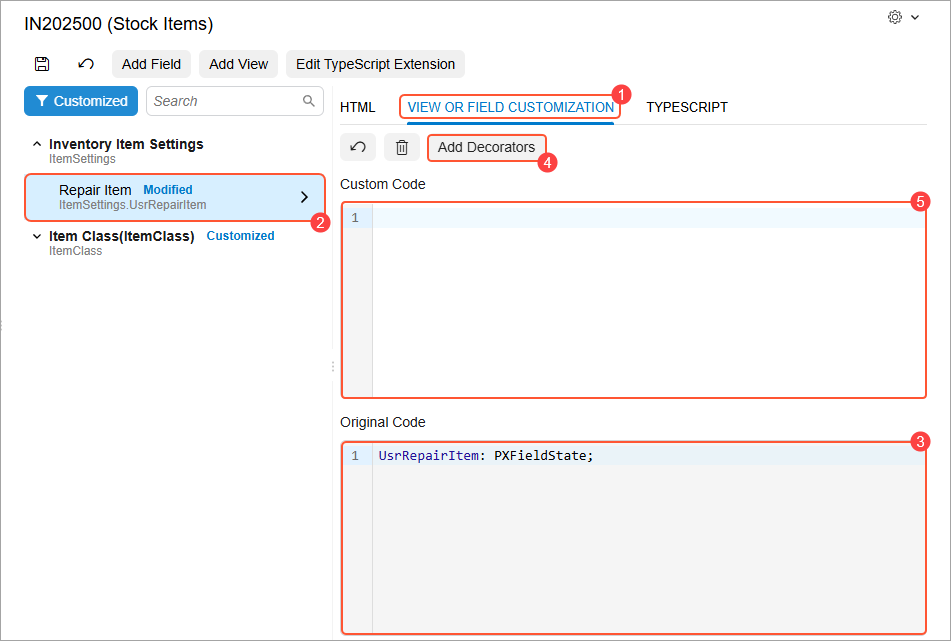

Figure 1. The View or Field Customization tab


Attention: Currently, the system only supports adding new decorators to the selected view or field. You can’t view and edit the properties of decorators that are already applied to the selected view or field in the original code.

The following section describes the general steps you perform to add a decorator to a selected field.

Adding Decorators to the Selected View or Field

Suppose that you need to specify that the UsrRepairItem field, represented by the Repair Item check box in the UI, should be disabled by default. You need to add the @controlConfig<ICheckBoxControlConfig> decorator to this field and set its enabled property to false. You’d perform the following steps:

  1. Click the Add Decorators button on the tab toolbar (Item 1 below).
  2. In the left table of the dialog box that opens, select the check box in the Selected column for the @controlConfig<ICheckBoxControlConfig> decorator (Item 2).
  3. In the right table, for the enabled property, select the check box in the Selected column (Item 3) and clear the check box in the Value column (Item 4).
  4. Click Add (Item 5).

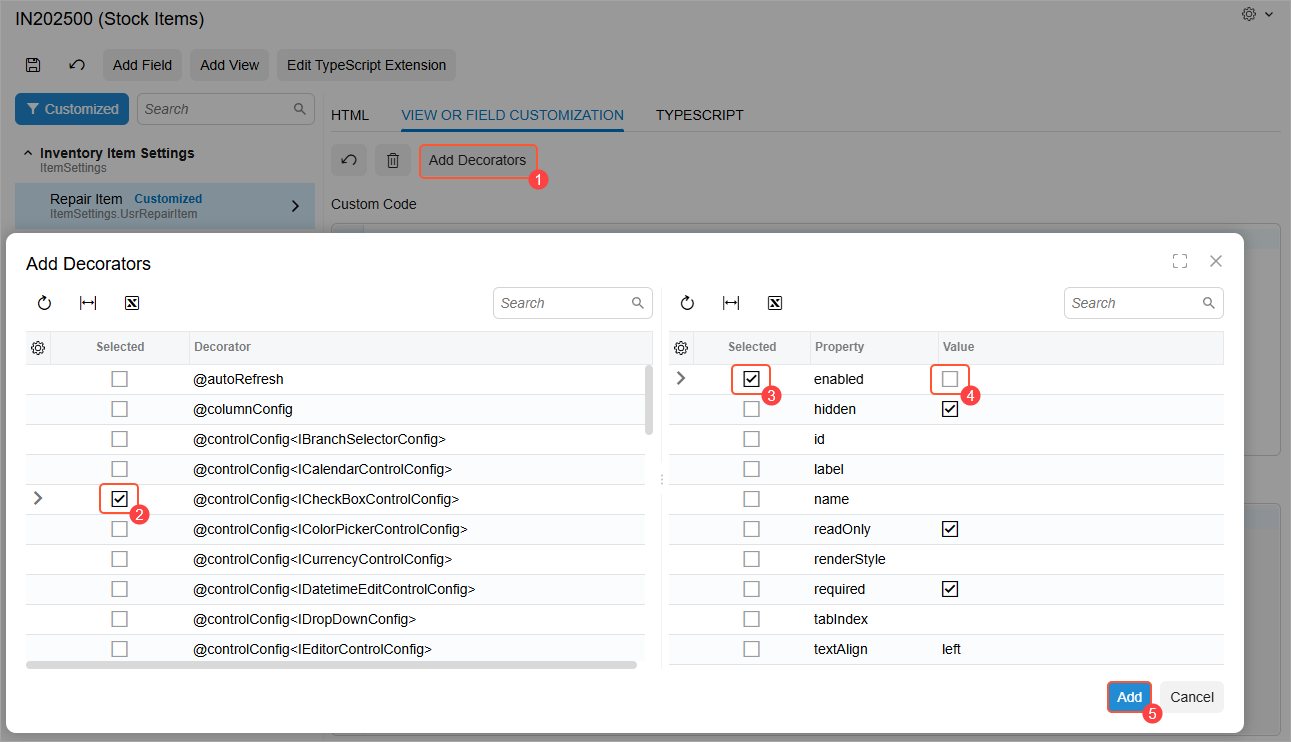

    Figure 2. The Add Decorators dialog box


    The added decorator code is displayed in the Custom Code area (Item 1 below).
  5. Click Save on the page toolbar (Item 2).

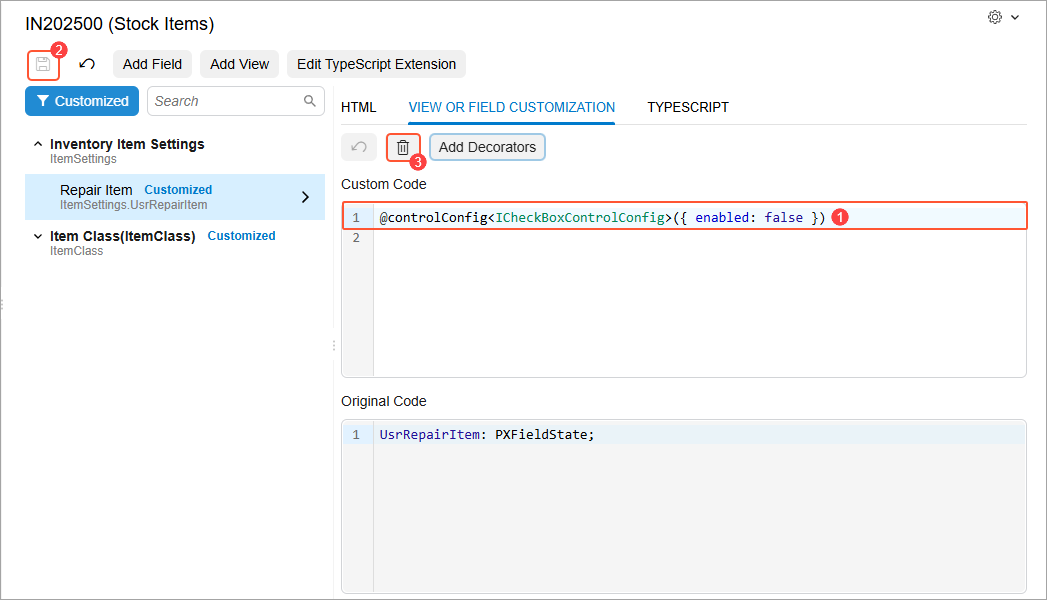

    Figure 3. The added decorator code


    The system updates the corresponding TypeScript extension file with the added code.

  6. To apply the changes, publish the customization project.

To remove the decorator code at any time, you click Delete (Item 3 above) and then Save on the page toolbar. To apply the changes, publish the customization project again.
