Tree: Markup of a Tree Node Using HTML

You can mark up the text of a node using HTML. For that purpose, you need to do the following:

  • In the treeConfig decorator, specify renderHTML: true
  • In backend, generate the text of the node including the HTML tags

For example, suppose that in a tree node, you need to display part of the text in italics, as shown in the following screenshot.

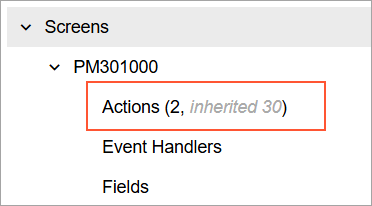

Figure 1. A tree node with HTML markup


For that purpose, you need to generate the following text of the node in backend.

Actions (2, <span class="nodeHint">inherited 30</span>)

In TypeScript, you need to configure the tree, as shown in the following code.

@treeConfig({
	dynamic: true,
	hideRootNode: true,
	idField: "NodeID",
	textField: "Title",
	modifiable: false,
	mode: "single",
	singleClickSelect: true,
	syncPosition: true,
	renderHTML: true,
})
export class SiteMapTree extends PXView  {
	NodeID: PXFieldState;
	...
}
