Template Mapping

---

Click the Map button to map elements between Greentree Desktop and the partner data structures, defining data conversion rules.

Note: Click the names of panels in the middle column to expand or collapse them.

You create a mapping by selecting an element on the Source column, selecting an element on the Result column (or vice versa) and clicking the Map button in the result details panel to confirm the data mapping between elements.

Greentree Elements

This structure is defined and supplied by Greentree Desktop.

Partner Elements

This structure is defined and supplied by the external partner.

Functions

Template

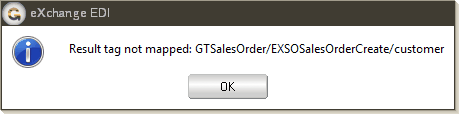

Select the Validate option to check if the mapping conforms to element configuration. If valid, a message displays. If the mapping is incorrect, a message like this displays:

Source Button

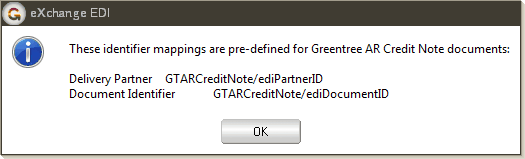

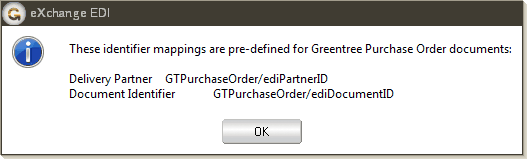

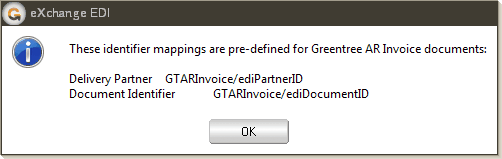

For outgoing documents, this displays:

For incoming documents, this applies:

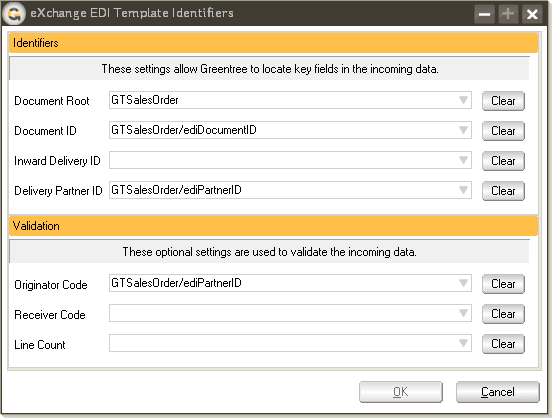

Use this form to enter the names for fields that function as sentries for the rest of the file — for example, as a match for qualitative values or as a checksum for quantitative values.

The more data entered in this form, the more stringent the incoming file validation will be.

Lower stringency allows more documents through for processing, but is offset with a slightly higher risk that some documents allowed through are not meant to be processed. For example, an order for customer A may arrive in customer B's directory. If no originator code is specified, EDI processes this order to the next stage for customer B.

With high stringency, EDI does not process a document that fails one or more checks, even though all other fields may be exactly as expected.

Note: Aside from the Document Root, all other fields are optional so the extent to which you apply controls id user-defined.

Originator Code

If a field in the incoming document is to be validated to ensure the document is received from the correct partner, select the field.

The value in this field is compared with the value of the Originator Code on the Customer Maintenance or Supplier Maintenance forms.

Line Count

If a field in the incoming file defines the number of lines in the file as a checksum, specify the field.

If the number of lines read doesn't match the value of this field, the document is rejected.

Document Root

A document must contain a single data root. This field defines where the body of each document starts.

Document ID

This locates the field in the incoming document that uniquely identifies the document — for example, an order number. When documents are processed, this value is recorded in the transaction log to help identify them. If multiple documents exist within a single envelope, this field identifies the individual document.

Delivery ID

This locates the field in the incoming document that uniquely identifies the transmission of the file sent — for example, a transaction or transmission number. When documents are processed, this value is recorded in the transaction log to help identify which documents have been received.

Partner ID

Use this field to specify the partner field to enable the correct profile to be selected in the case of a File-to-File document type.

Rogue File Elements

Because EDI must be strict when it encounters an incoming file, this option allows some degree of fuzzy parsing. The file is accepted even if it encounters rogue elements specified here. Examples of rogue characters are ~ and CtLf.

Definition

If you select Manual, EDI ignores the character entered in the Rogue File Elements field.

If you select Automatic, EDI ignores certain non-alphanumeric and other unexpected characters.

Cases

Select an option to indicate whether EDI ignores the first, the last, or all instances of the character entered in the Rogue File Elements field.

Revert

Click this button to discard your changes and reopen the last saved version of the template.

---
